Milwaukee 3632-21 M12 360-Degree 3-Plane Cordless Laser Kit - Green (4 Ah)

Model: miln3632-21
$599.00
free shipping
This item qualifies for
FREE SHIPPING
free shipping

Estimates For

alert warning icon

  • Last 2 In Stock

OR PAY WITH

We’re unable to ship this item to: AK HI
Milwaukee 3632-21 M12 360-Degree 3-Plane Cordless Laser Kit - Green (4 Ah) Model: miln3632-21
price for vip customer
$599.00

OR PAY WITH

Product Features & specs :

High-intensity laser beams allow visibility of green lines up to 125 ft. for fast and accurate leveling and alignment

Visible Lines

High-intensity Laser Beams makes green lines visible up to 125 ft.

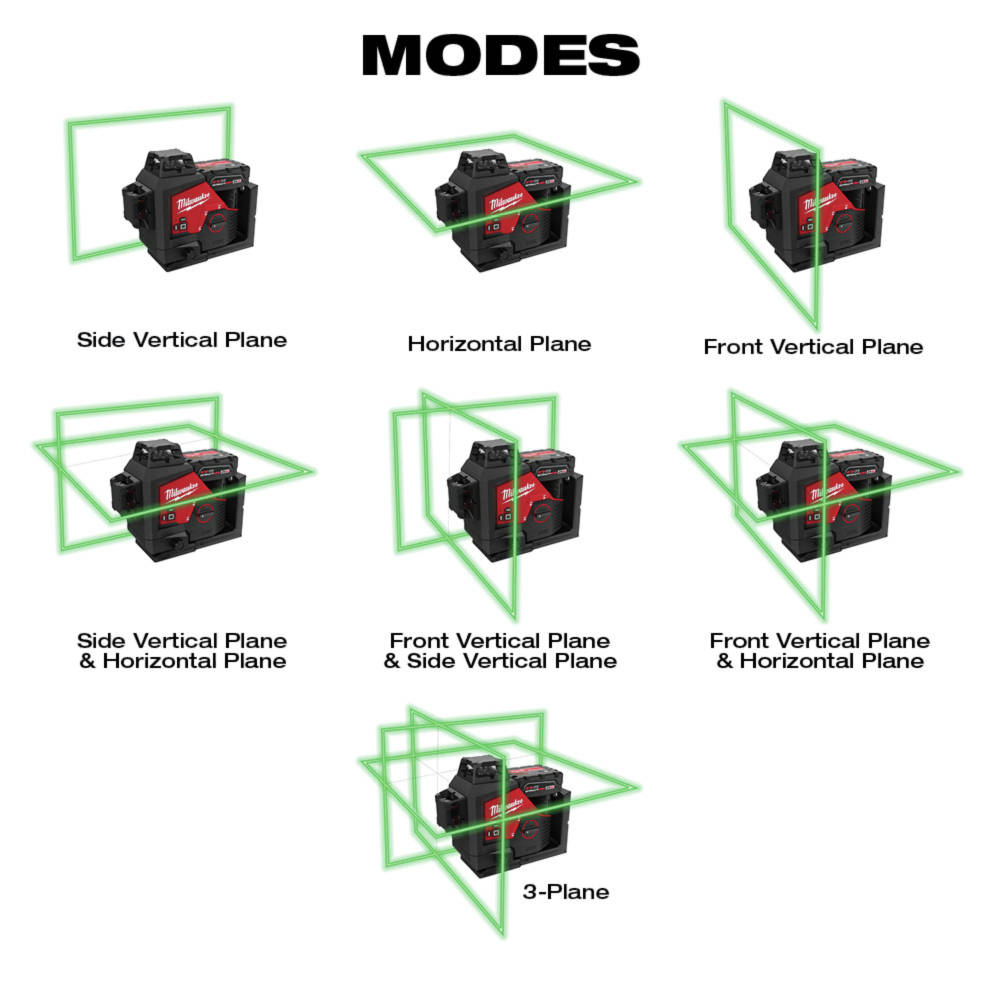

Seven modes to suit any situation

7 Modes to Use

The 7 Modes suitable for precise alignment in any work environment

M12 REDLITHIUM CP3.0 battery delivers all day runtime

Powerful Runtime

Paired with M12 REDLITHIUM CP3.0 4 Ah Battery, more work gets done in 15 hours runtime

Milwaukee 3632-21 M12 360-Degree 3-Plane Cordless Laser Kit - Green (4 Ah)

Details
Level, plumb and align within a 250 ft. diameter with the Milwaukee M12 Green 360-Degree 3-Plane Laser (3632-21). This high intensity laser is built for quick and easy setup: screw holes allow hanging on wooden surfaces, while the tripod thread mount is compatible with tripods with 1/4-20 or 5/8-11 threads. An integrated magnetic base lets users attach directly to metal studs, or clip into the 360-degree bracket or laser track clip accessories (sold separately) for added versatility. A self-leveling feature ensures accuracy within 1/8 in. at 33 feet, and micro-adjust dial helps users achieve precise point-to-point alignment by pivoting on the plumb point. This green laser shines two vertical and one horizontal planes to aid with long-distance leveling, squaring, alignment and transferring. This Milwaukee 360 degree laser is built to survive drops up to 3 feet, and is IP54 rated to protect against dust and liquids. As part of the M12 system, this laser level is compatible with all M12 REDLITHIUM batteries, and will operate for over 15 hours when using an XC4.0 pack.
Features:
  • Two vertical and one horizontal high intensity green lasers delivers a 250 ft. diameter visible working range with accuracy of +/- 1/8 in. at 33 feet
  • Extend directional range up to 165 ft. when using range detector
  • M12 REDLITHIUM XC4.0 battery delivers over 15 hours of runtime
  • Integrated mount features rare-earth magnets for secure fastening to metal studs and micro adjust dial to help users align quickly
  • Magnetic mount is compatible with 360-Degree bracket and laser track clip accessories (sold separately)
  • Self-leveling feature with a tilt of +/- 4 degrees
  • Threaded mount is compatible with any tripod with 1/4-20 or 5/8-11 threads
  • IP54 rated for protection against liquids and dust, and impact resistant up to 1m
  • Compatible with all M12 REDLITHIUM batteries
  • 3 Year limited warranty
What’s Included:
  • M12 Green 360-Degree 3-Plane Laser - 3632-20
  • (1) M12 REDLITHIUM XC4.0 Extended Capacity 4 Ah Li-Ion Battery - 48-11-2440
  • M12 Li-Ion Battery Charger - 48-59-2401
  • Responsive Laser Alignment Target - 48-35-1111
  • Blow-Molded Carrying Case
Power Source
Cordless
Charging Ports
No
Wifi compatibility
No
Batteries Included
1
Battery Type
Li-Ion
Accuracy Margin (Horizontal)
+/- 1/8 in
Bluetooth Compatibility
No
Accuracy Margin Distance (Horizontal)
33 ft
Battery Warranty
3 Year
Operating Temperature (F)
14 Degrees Fahrenheit - 104 Degrees Fahrenheit
Effective Range (Visual)
Directional - 125 ft/Diameter - 250 ft
Charger Included
Yes
Tripod Thread
1/4 - 20 in/5/8 - 11 in
Leveling Function
+/- 4 Degrees Tilt
Automatic Shut-Off
No
Battery Life (Approx.)
15 Hours
Protection Class
IP54
Case Included
Yes
Case Type
Blow-Molded Hard Case
Accuracy Margin (Vertical)
+/- 1/8 in
Effective Range (Receiver)
165 ft
Compatible Batteries
M12
Accuracy
+/- 1/8 in
Battery Amp Hour
4 Ah
Voltage
12V
Laser Color
Green
Laser Diode
510 - 530 nm
Laser Class
Class II
Accuracy Margin Distance (Vertical)
33 ft
Battery System
M12
Length
7.8 in.
Width
4.12 in.
Height
6.5 in.
Weight
2.4 lbs.
Warranty Term
3 Year
